Substation & Switchyard Structures

KP Green Engineering is a company that designs and manufactures substation and switchyard structures which are essential to electrical power transmission and distribution networks. A substation is a high-voltage electric facility that converts electricity from transmission voltages to distribution levels so electricity can be delivered in a safe and reliable manner to residential, commercial, and industrial uses. Furthermore, they allow for changing from AC to DC and transferring power out in efficiencies throughout the grid.

Our expertise covers a complete range of substation structures and switchyard structures, designed and manufactured to client specifications, site conditions, and electrical standards. We supply Gantry structures and Equipment Support Structures that ensure seamless integration between transmission lines and substation equipment.

Request a Custom Quote

We offer two major types

We also provide flexible mounting solutions, allowing both Gantry and Equipment Support Structures to be installed as freestanding units or integrated into substation buildings as per project needs.

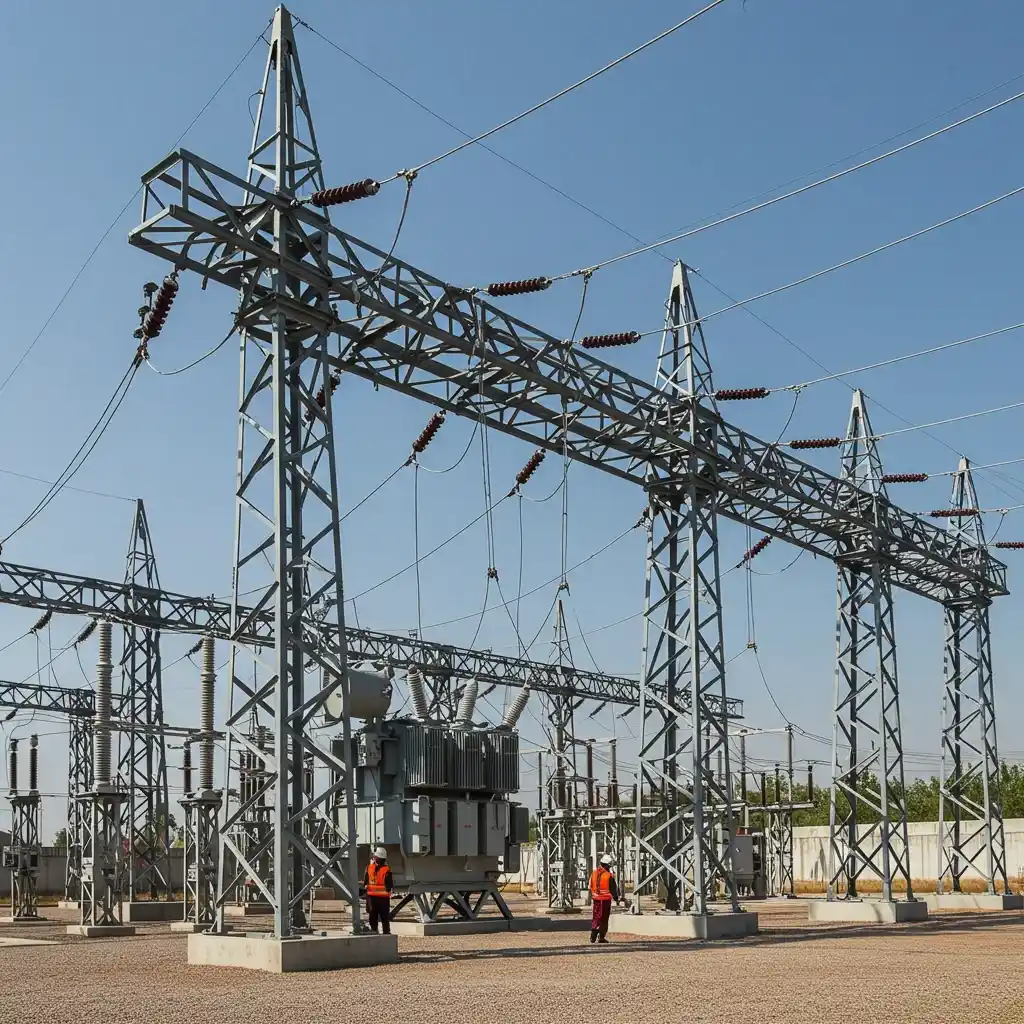

Gantry Structures

Guide power conductors from the last transmission tower into the substation equipment and manage line crossings. These are engineered with robust columns and beams based on the number of line circuits.

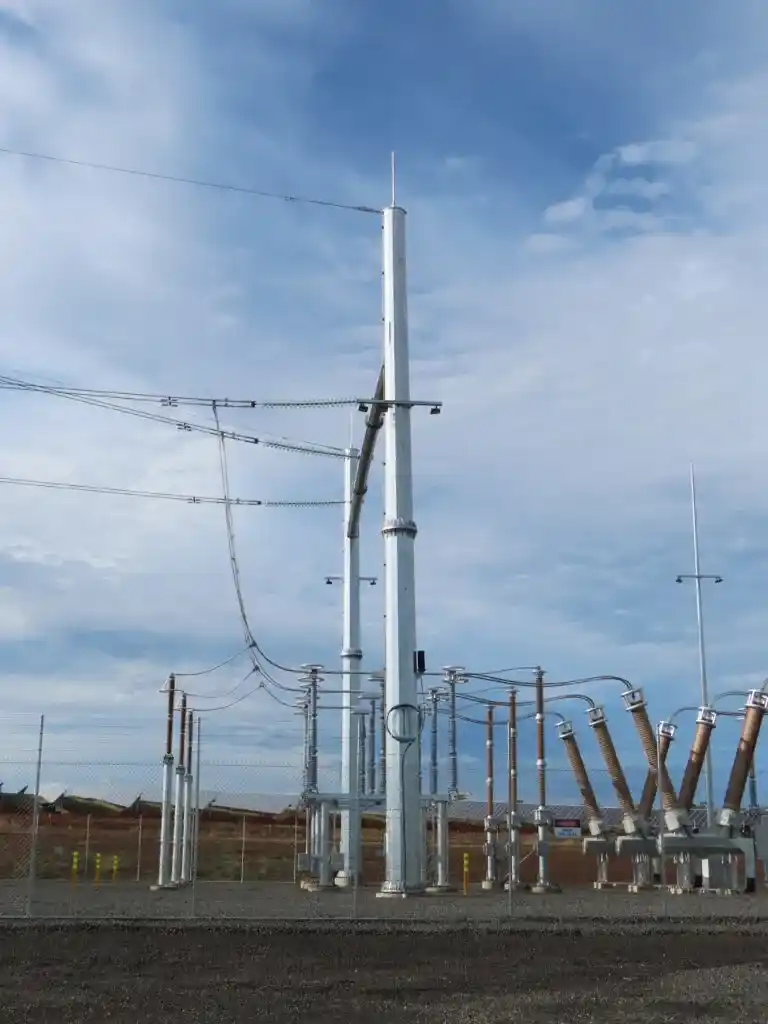

Equipment Support Structures

Serve as supporting columns for electrical equipment in substations, designed to withstand dynamic loads and site-specific conditions.

Product Specification

Parameter	Specification
Structure Types	Gantry Structures, Equipment Support Structures
Material	Mild Steel, Hot Dip Galvanized Steel
Height Range	As per client requirement
Load Capacity	Designed for heavy-duty electrical equipment and conductor loads
Standards	As per IS / IEC standards
Applications	Substations, Switchyards, Power Plants

Precision-engineered gantry and equipment support structures.
Fabricated from high-strength galvanized steel.
Customized designs as per project drawings and site conditions.
Suitable for high-voltage substations and switchyards.
Corrosion-resistant finishes for long service life.

Structural Reliability: Engineered to handle heavy electrical equipment and withstand harsh weather conditions.
Design Flexibility: We provide different substation & switchyard structure types that are customised to meet unique client and project requirements.
Long Lifespan: Hot dip galvanized finishes ensure corrosion protection and extended durability.
Seamless Integration: Gantry and equipment support structures designed to connect transmission towers with substations efficiently.
Proven Performance: Successfully deployed across multiple power infrastructure projects.

Why Choose KP Green Engineering

India’s Trusted substation & switch yard structure manufacturers

As a leader in designing and manufacturing substation and switchyard structures in India, KP Green Engineering is uniquely qualified. Our facility has been certified by ISO 9001:2015 and employs our own in-house galvanizing unit. We deliver precision-engineered mounting systems of the highest standards for reliability, strength, and long-term performance.

Over 6,000 MT

Monthly Production Capacity

MoRTH & IRC Approved

Certified Manufacturing Practices

Trusted Supplier

To Bharatmala, SEZs, Refineries

20+ Years Lifespan

100% In-House Hot-Dip Galvanization

Applications Across Sectors

Our substation & switchyard structures are deployed in diverse applications across the power and infrastructure ecosystem:

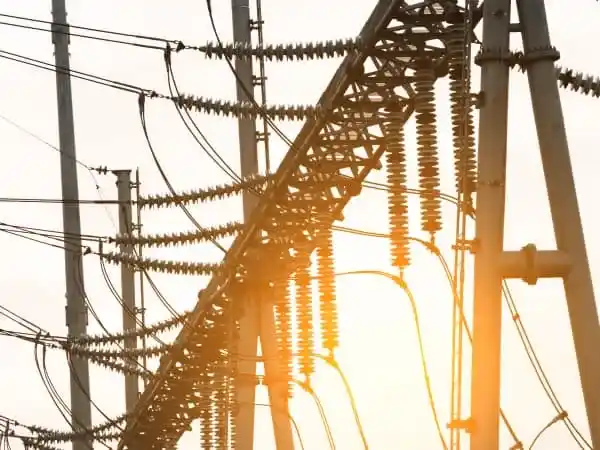

Power Transmission Networks

Seamless integration between transmission lines and substations.

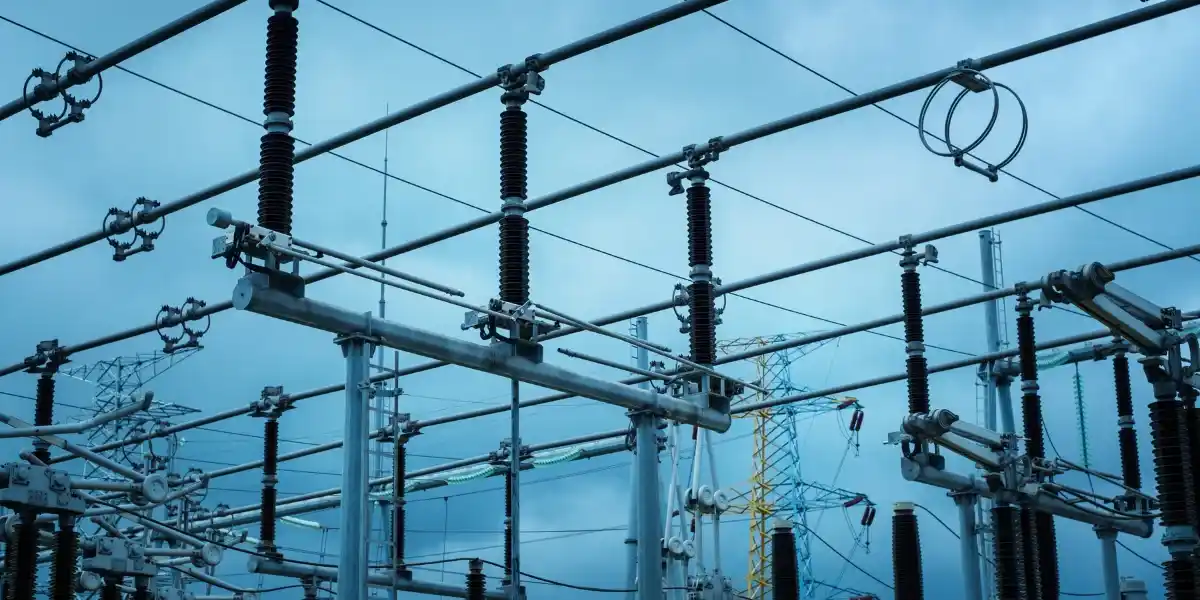

Distribution Substations

Supporting equipment for reliable power supply to homes and businesses.

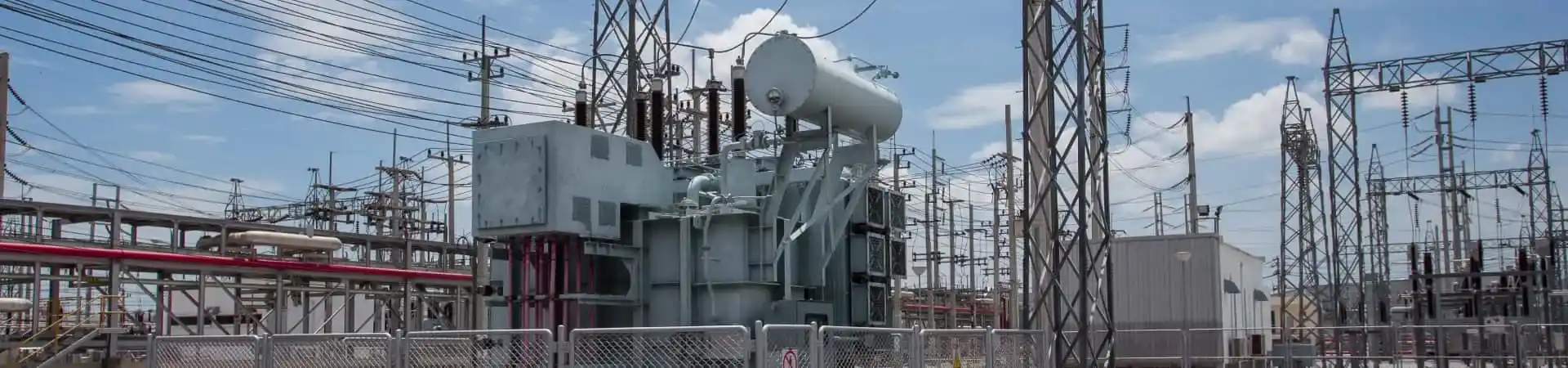

Industrial Facilities

Heavy-duty structures for captive substations in refineries, steel plants, and factories.

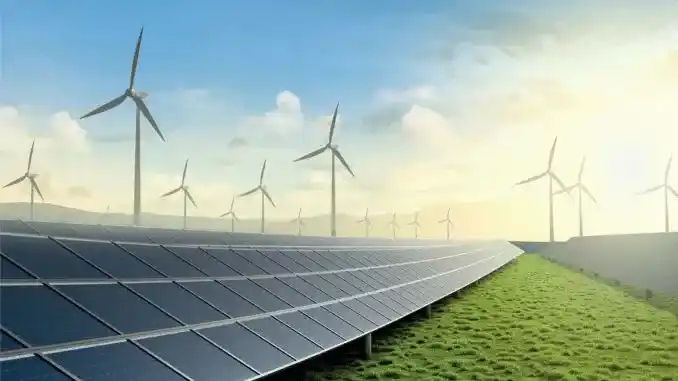

Renewable Energy Projects

Infrastructure support for solar and wind substations.

Industries We Serve

Our solutions are trusted across diverse industries for their performance, reliability, and precision engineering.

Renewables

Power & Transmission

Railways

Urban & Rural Infrastructure

Construction Infrastructure

Telecommunication

Looking for robust and customizable substation & switchyard structures for your next project? Partner with KP Green Engineering today.

Quality & Certifications

KP Green Engineering is committed to excellence across every stage of production:

ISO 9001:2015 Certified

Consistent quality control and customer satisfaction across all operations.

Rigorous Testing

Consistent quality control and customer satisfaction across all operations.

Third-Party Inspection

We welcome independent agencies to validate our quality and maintain complete transparency.

Frequently Asked Questions

Substation and switchyard structures are essential elements of any high-voltage electrical power system. These durable structures are typically comprised of gantries and other equipment supports. They serve a number of purposes having to do with directing and supporting electrical conductors and supporting essential electrical devices, but most importantly, ensuring safe and accurate operation of high-voltage substations.

At KPGE, we can provide a full spectrum of engineered and fabricated substation and switchyard structures to satisfy our clients' needs and unique site layout requirements. We can provide multiple types of structures, including gantry structures and equipment support structures, to perform effectively and last as long as possible.

Yes, all switchyard structures and substation support systems are manufactured as per customer drawings, site loads, and operational requirements.

Our substation structures are manufactured from mild steel with hot dip galvanization to ensure strength, durability, and resistance against corrosion.
